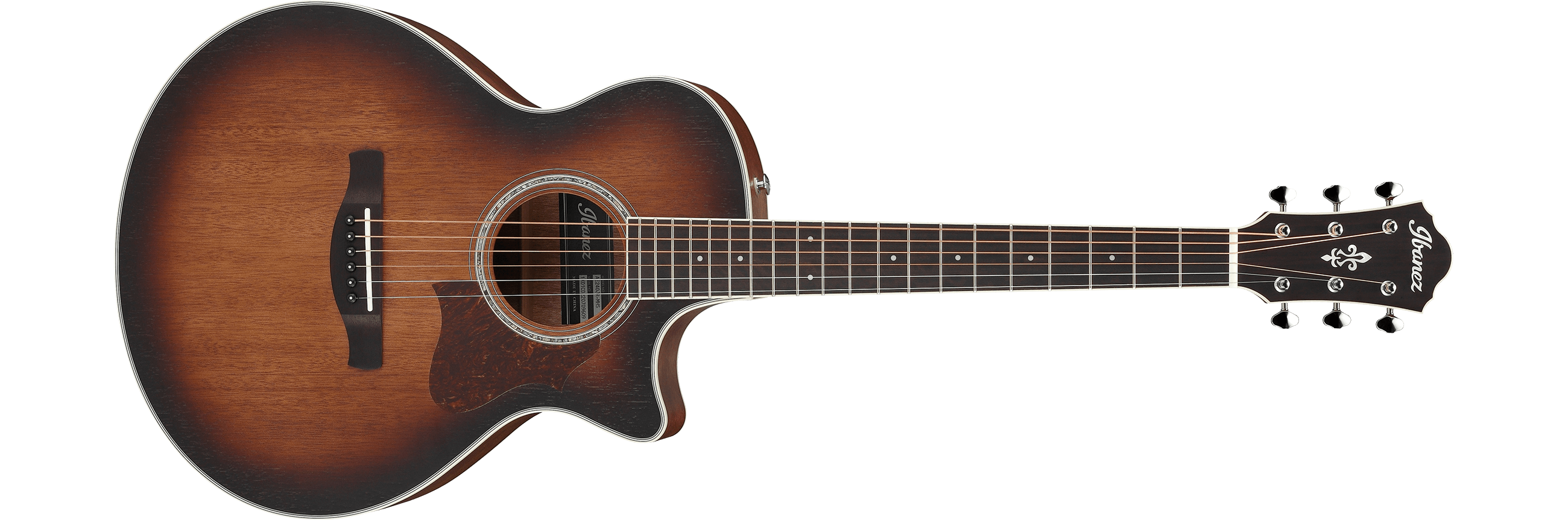

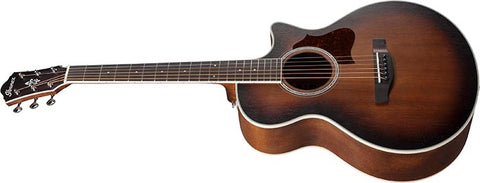

Ibanez AE240JR MHS : Mahogany Sunburst High Gloss

• SPECS

  • body shape
    AE Junior body
  • bracing
    Ibanez Original Scalloped X bracing / Tone Projection Back Bracing
  • top
    Solid Okoume top
  • back & sides
    Okoume back & Okoume sides
  • neck
    AENyatoh neck
  • fretboard
    Ovangkol fretboard
  • bridge
    Ovangkol bridge
  • inlay
    White dot inlay
  • soundhole rosette
    Abalone and Maple

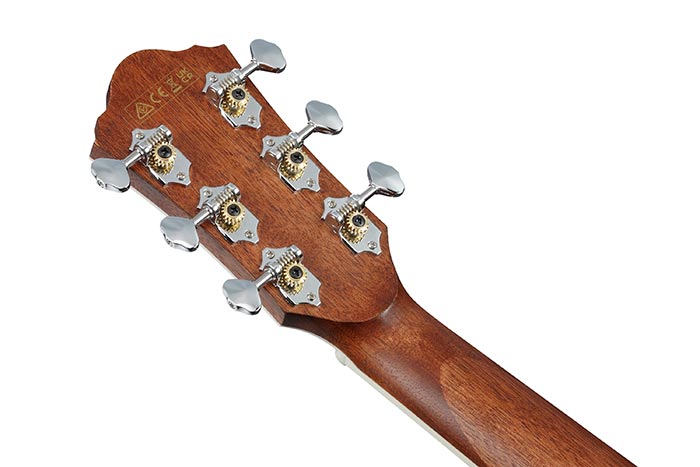

  • tuning machine
    Chrome Open Gear tuners (18:1 gear ratio)
  • nut material
    Bone
  • number of frets
    20
  • saddle material
    Compensated Bone
  • bridge pins
    Ibanez Advantage™
  • strings
    D'Addario® XTAPB1152
  • string gauge
    .011/.015/.022/.032/.042/.052
  • string space
    11mm
  • factory tuning
    1E,2B,3G,4D,5A,6E
  • pickup
    Ibanez T-bar Undersaddle
  • preamp
    Ibanez Custom Electronics
  • output jack
    1/4" Endpin Jack
  • battery
    CR2032 x2

• NECK DIMENSIONS

  • • Scale :
      607mm/23.9"
    • a : Width
      43mm at NUT
    • b : Width
      55mm at 14F
    • c : Thickness
      20mm at 1F
    • d : Thickness
      21mm at 7F
    • Radius :
      400mmR
